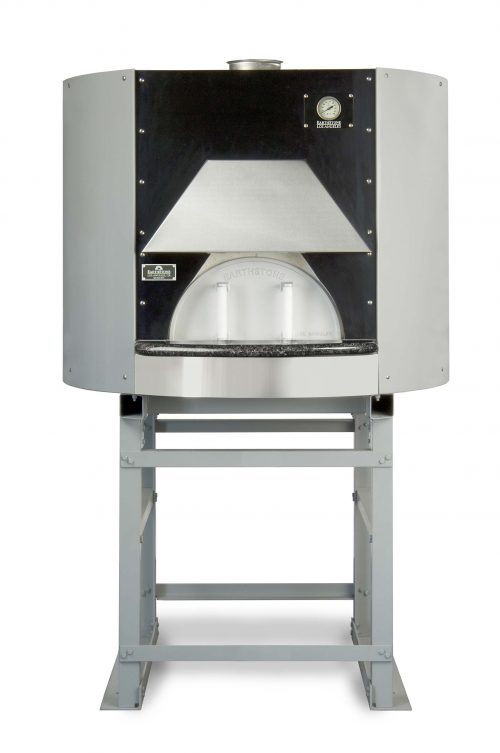

Model 90

Modular Wood Fire Oven

Food Capacities:

8″ Pizzas: 3-4
12″ Pizzas: 2-3
Eight medium size steaks or six large steaks on 17″ x 20″ grilling rack

Ovens come standard with:

  • 4-inch thick advanced refractory elements with superior mass for high thermal resistance.
  • 12″X12″ industrial bakers hearth tiles, “Pierre de Boulanger”.
  • Includes: Mechanical temperature gauge, Cast aluminum door, Metal entrance plate.
  • Oven heats up quickly for low fuel consumption.
  • Easy to install — Comes with complete installation video and booklet, operation and maintenance instructions.
  • Hood designed to remove smoke & odors efficiently.
  • Five year limited warranty.

Downloads:

Installed Dimensions/Specs:

Concrete block assembly:
56″ x 48″ x 80″ (Wt 7,500 lb)
View Diagram

Steel frame assembly:
48″ x 44″ x 80″ (Wt 2,750 lb)
View Diagram

Shipping Weight: 1,200 lbs.

Interior Cooking Area: 35″ in diameter.

New York MEA No.: 207-98E

Description

Model 90

Modular Wood Fire Oven

Model 90 MODULAR WOOD FIRE OVEN
Wall and dome elements are a 4 inch thick superior high temperature refractory material composed of 80% alumina and other advanced elements for extra durability, heat retention and longevity.
High Thermal Mass for excellent heat retention.
Hearth Floor Tiles – “Pierre de Boulanger” are cold pressed at 8,500 psi and ceramitized at 2800F degrees.
Large oven entrance opening allows for maximum visibility and easy usage.
Easy to install — Comes with complete installation DVD and booklet, operation and maintenance instructions.
Five year limited warranty
Shipping Weight: 1,200 lb

Modular Oven Includes

  • Floor Tiles (18) – 1 – 12″ X 6″, 11 – 12″ X 12″ , 2 – Triangular 12″ X 12″ x 16 1/2″ 2 – Four Sided -12″ X 5″ X12″x 1 1/2″, 2 – Four Sided -10″ X 12″ X 5″ X 13″
  • Oven Pieces: Primary Hood, Dome Pieces (2), Side Wall Pieces (3), Front Entrance Piece
  • Steel Entrance Plate (black)
  • Thick Cast Aluminum Door With Teflon Handles
  • Dial Temperature Gauge (Range 0-1000F)
  • Refractory Cement (22 lb / 10 kg Bag)
  • Galvanized Metal Flashing
  • High Heat Silicone Tube
  • Plywood Spacers
  • Refractory Cement (container)
  • Package of Fire Starters
  • Stainless Steel Pizza Peel
  • 4″ x16″ Screened Vent
  • Installation Instructions and Video/DVD
